A complete and straightforward guide for first-time buyers and property investors navigating the mortgage process in Dubai.
If you have been in touch with a real estate agent or been browsing through property listings, there is a very good chance you have come across one of the following terms. For some buyers, the mortgage process is the first time they come across these documents.
In simple terms, once you understand what each document does, the entire process becomes far less intimidating. As a licensed mortgage broker in the UAE, we go through this with clients every day. This guide is written the same way we explain it in person, simple, practical, and covering what you actually need to know
Why Does the Bank Ask for Property Documents?
When approving home loans in the UAE, banks look into both the borrower’s income and credit history/worthiness, as well as the property, which serves as collateral for the loan. As part of this process, banks conduct a property valuation through an independent valuer appointed from the bank’s approved panel of valuers.
The valuer inspects the property and assesses key factors such as the built-up area, layout, location, view, and overall condition, while also referring to relevant documents, including the title deed and property documents (floor plan, affection plan, site plan, and municipality drawings, as applicable). The findings are then reviewed internally before the final valuation report is submitted to the bank.
| Tip: If a property’s price includes upgrades/renovations, ensure supporting documents (approvals, NOCs, drawings, contractor quotes) are available. If these documents are not available during the evaluation, the full value may not be reflected. |
Floor Plan: The Document That Shows How Your Property Works
Floor plan outlines the property’s layout, room sizes, and built-up area, giving buyers a clear sense of how the space functions. From a mortgage and valuation point of view, the floor plan is sufficient to initiate the evaluation process for apartments, townhouses and villas.
How to Get a Floor Plan in Dubai
- Your real estate agent will usually have the floor plan and can share it before, during or after the property viewing.
- For off-plan properties or recently handed over units, floor plan is typically included in your Sales and Purchase Agreement (SPA) or the developer's official project brochure.
- If you are buying a resale property and the agent does not have it, contact the developer or building management. They usually maintain these records and can share them upon request.
- For newer projects, floor plan details may also be available on the developer's official website.
| Broker Tip: When comparing properties, do not simply focus on the price. Study the price per sq. ft based on the usable layout or built-up area (BUA). Sometimes, a slightly smaller unit with a better layout may offer more value than a larger one. |

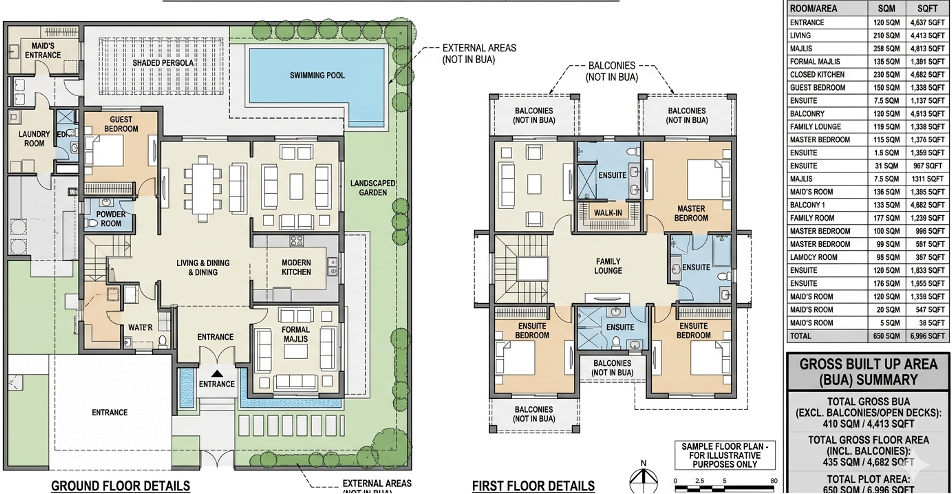

Sample Floor Plan
Affection Plan: The Official Legal Boundary of Your Property
Affection plan is the legal GPS coordinate of the property, officially recorded in the government's cadastral system. The authority responsible for issuing an affection plan depends on the type of property. Dubai Municipality generally oversees land plots and zoning-related matters, while the Dubai Land Department (DLD) handles registered properties such as apartments, villas, and master-planned communities. In some DDA-regulated areas and certain free zones, however, the document may need to be requested through the relevant authority portal instead.
Depending on the property and authority, an affection plan may show details such as boundary coordinates, adjoining plot references, permitted land use, and other planning controls tied to the property. In larger master-planned communities, affection plans also help maintain accurate planning records when plots are updated, merged, or redeveloped over time.
How to Get an Affection Plan in Dubai
- If the property is already registered in your name, you can access it through the Dubai REST app using your UAE Pass. Once logged in, you will find it under your property details.
- For off-plan properties or recently handed-over units where the title deed has not yet been issued or registered, this document is usually available from the developer
- For independent villas and land plots, you may apply directly through the Dubai Municipality website or visit the nearest Dubai Municipality Service Center.
| Important Note: Certain DDA-regulated zones or free zones may require you to go through a different authority instead of Dubai Land Department or Dubai Municipality. Your broker, developer, or seller can guide you on the right process. |

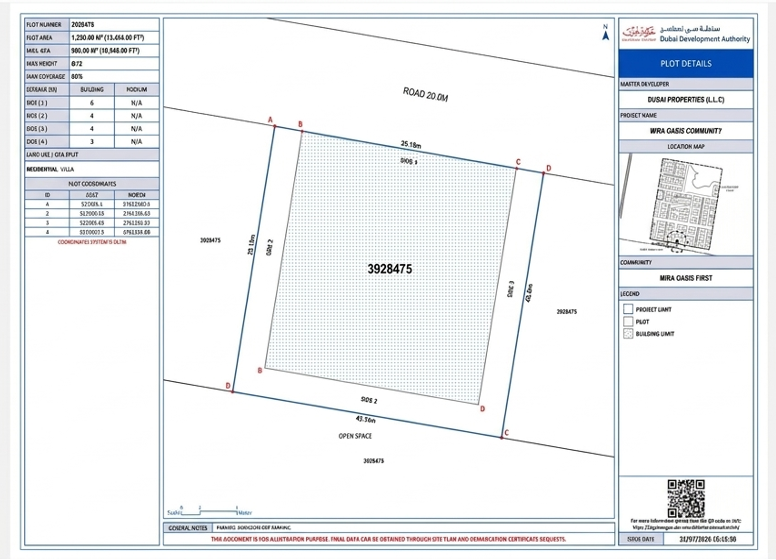

Sample Affection Plan
Site Plan: The Document That Shows the Plot and The Floor Plan
Site plan shows where the property is located on the plot or within the community. It helps confirm details of plot boundaries, access, and any building limits set for that land, alongside the floor plan. Depending on the property, it may also show road access, nearby plots, setbacks, and the allowed building height or number of floors.
How to Get a Site Plan in Dubai
- For registered properties, Dubai Land Department offers a Property Map Request service, and map issuance requests can also be submitted through Dubai REST app.
- In DDA-regulated zones, DDA provides a dedicated Site Plan Issuance / Site Plan Request service through its planning channels.
- In some cases, the seller, developer or authorised representative may need to request it on the owner’s behalf.

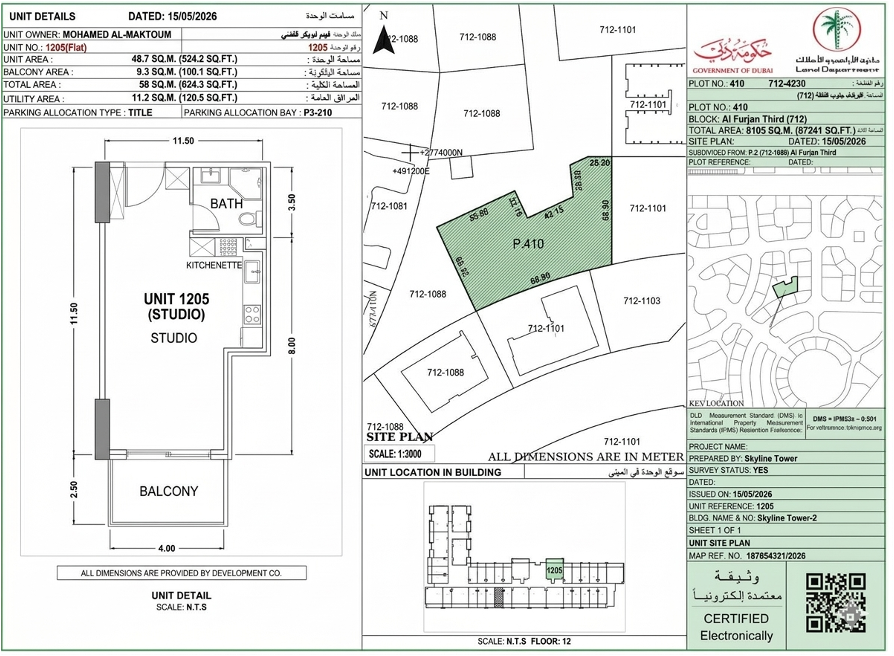

Sample Site Plan
Municipality Drawings: Proof That What Was Built Had Official Approval
Municipality drawings are the most technical out of the rest and are not usually required for a standard residential/vanilla purchase. These are the official drawings approved by Dubai Municipality at the time the property was built or modified. They answer the question that banks and valuers sometimes need answered: was this property constructed, extended, or modified with the correct government approvals in place.
- For apartments or townhouses, municipality drawings are usually held by the developer and can be obtained through the developer’s office, or via the Dubai Municipality Building Permit Archive if the developer no longer exists.
- For villas within master-planned communities, drawings are managed by the master developer and can be requested through their portal or office, or via the Dubai REST app for DLD-registered properties.
- For independent villas, municipality drawings can be obtained directly through Dubai Municipality online or in person, with processing time typically taking 2–5 working days.
- For land plots, no building drawings exist, so an approved plot survey drawing must be obtained through the Dubai Municipality Survey Department, an approved survey company, or the Dubai Land Department (DLD).
| Broker Tip: One issue buyers sometimes run into is assuming that the marketed plot size or property details automatically match the official records. If names, boundaries, approvals, or plot information are outdated or inconsistent, it can create delays during valuation or legal review. This can also happen if a previous plan is outdated, if approvals are unclear, or if a required NOC is missing. In such situations, the bank or valuer may ask for more clarification and updated documents to support. |

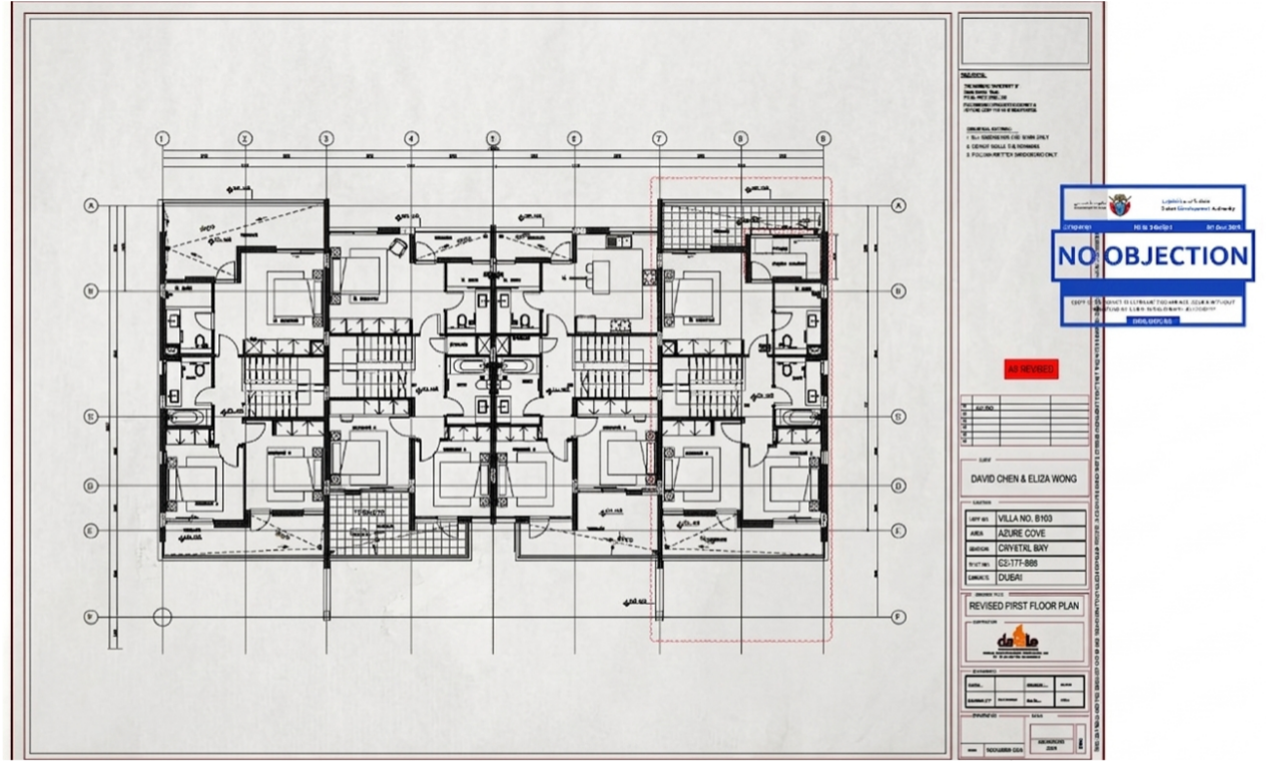

Sample Municipality Drawings
Which of These Documents Does Your Mortgage Actually Need?
This is one of the most common questions we get from buyers, and the honest answer is: it depends on the property.
It is important to note that none of these documents replace the title deed, which remains the main proof of ownership and the primary record of the property details. Floor plans, affection plans, site plans and municipality drawings all support the valuation and mortgage approval process by giving the bank and valuer a complete and legally accurate picture of the property.
| Property Type | Documents Typically Required |
|---|---|
| Apartment or Townhouse | Title deed and floor plan with BUA |
| Villa (within a master community) | Title deed, floor plan, and often an affection plan for boundary confirmation |
| Independent Villa or Stand-alone | Title deed, floor plan, affection plan, and municipality-approved drawings |
| Land Plot or Plot Finance | Title deed and affection plan |
| Property with Renovation | Title deed and municipality-approved drawings are required. Additional documents like approved renovation/contractor quotations and relevant NOCs (No Objection Certificates) may be required, depending on the property |
Questions Every New Buyer Asks About These Documents
Over the years, we have answered thousands of questions from buyers going through this process for the first time. Here are the most common ones, answered.
Do I need all four documents discussed for every property purchase?
No. For most apartment, townhouse and villa purchases, a title deed and floor plan are enough to begin the bank valuation process. Affection plans, Site plans and municipality drawings are only requested when the property type or structure requires additional confirmation.
What is built-up area (BUA) and why does it matter?
Built-up area (BUA) refers to the total usable space of a property, including internal areas, walls, balconies and terraces, depending on the developer’s definition. It is a key factor used by valuers to determine a property’s market value or rent, making an accurate floor plan with the correct BUA is essential for the valuation process.
What happens if I cannot produce the required documents?
If documents are missing, the valuation cannot proceed or the final valuation report may not reflect the full potential of the property. The best approach is to have your mortgage broker identify the full document list, so there are no surprises later.
Does an affection plan expire?
Affection plans do not technically expire, but they can become outdated if zoning laws change, if boundaries are adjusted, or if modifications are made to the property without updating the records. Banks and valuers may request an updated plan if they believe the existing one does not reflect the current state of the property.
What if the Affection Plan differs from the Sales and Purchase Agreement (SPA)?
If the area shown on the affection plan is different from the Sale and Purchase Agreement (SPA), the affection plan is typically treated as the more reliable reference for legal and valuation purposes and may supersede the SPA. Any discrepancies should be clarified and resolved with the developer before proceeding.
Get Started with FCMB
At FCMB we make sure you are never caught off guard during the mortgage process. Whether you are buying your first home, investing in a second or subsequent properties, or navigating the process as a non-resident, we are here to guide you from start to finish.
Disclaimer: This article is intended as general guidance for property buyers in the UAE. Documentation requirements may vary depending on the property, bank policy, and transaction structure. Details mentioned here are valid as of the published date and may be subject to change.
